Today’s post is a two-for-one sale: both a beautiful inGraph and a useful feature of inGraphs. Let’s start off with the graph:

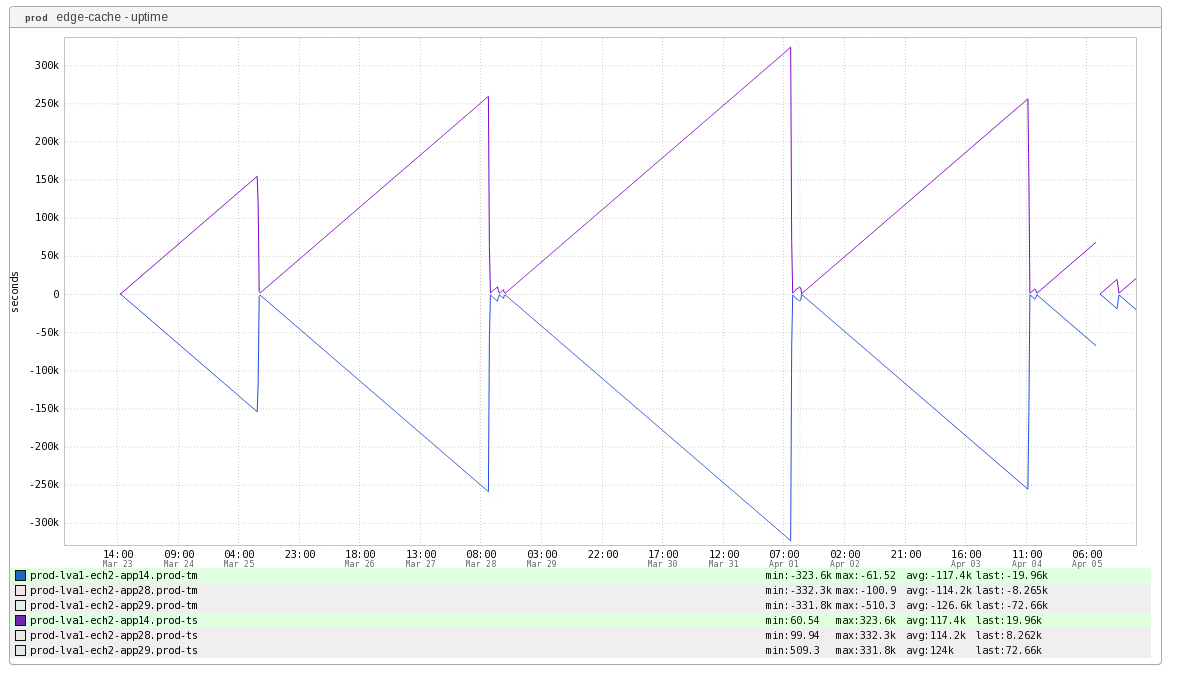

As per the label this an edge cache uptime graph and appears to be two related processes in ATS. Here’s what the graph definition looks like:
- title: edge-cache - uptime defs: - range: ‘%prod-ech2.edge-cache.1’ label: traffic_manager rrd: ats/proxy.node.restarts.manager.uptime.rrd - range: ‘%prod-ech2.edge-cache.1’ label: traffic_server rrd: ats/proxy.node.restarts.proxy.uptime.rrd RPN: - expression: -1,traffic_manager,* label: tm - expression: traffic_server label: ts params: vlabel: ‘seconds’
The bit that I would like to call attention to is the RPN (Reverse Polish Notation) stanza. There are two metrics here labelled traffic_manager and traffic_ser ver. The RPN bit says to take each data point in the time series for traffic_manager and multiply it by -1, and take each data point in the time series for traffi c_server and simply return it. It would also appear that both of these processes get bounced at the same time (or in quick succession), which gives us this lovely inGraph.
[Edit: I’d meant to give attribution to Jerrish Thomas for pointing this particular inGraph out to me.]
