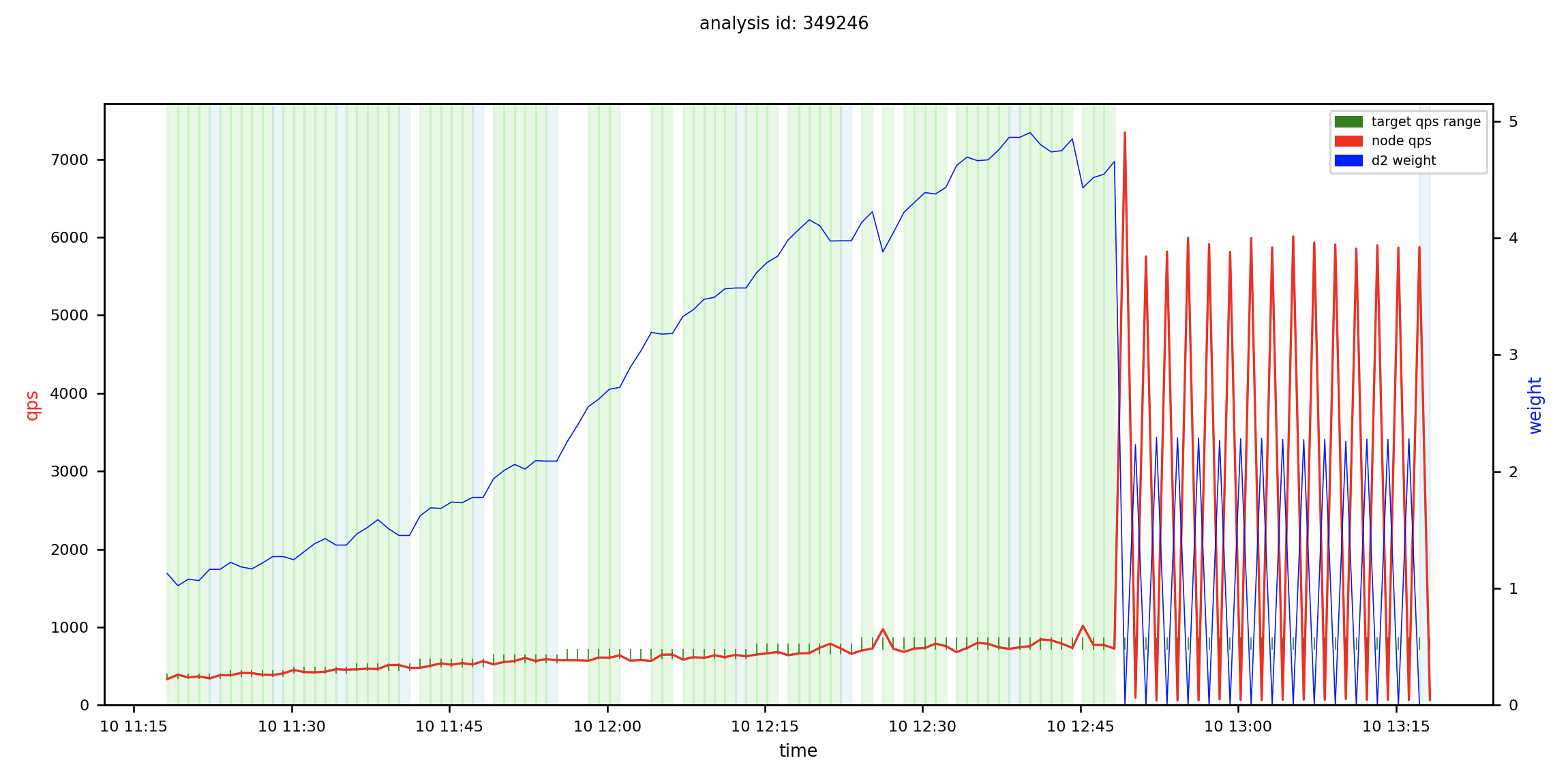

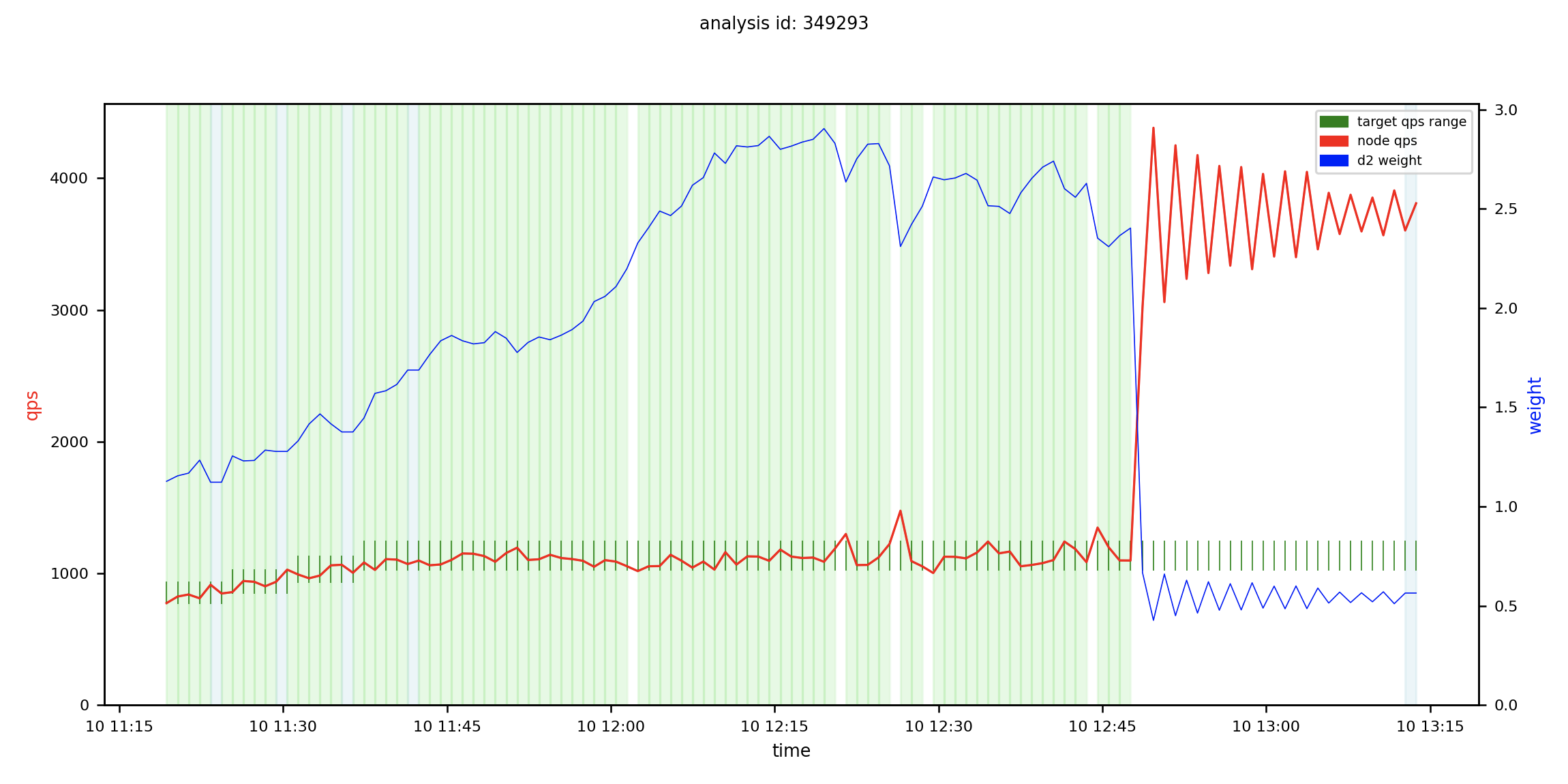

Earlier this week _Brandon Matthews_posted these two beaut’s in #sre:
Oh man. I was curious, so I thought I’d do a little digging into the first one and see what I could see. I didn’t (and still don’t) know exactly where these graphs came from, but I took an educated guess that they were graphs of redliner runs based on the legends.
$ redliner test show 349246
Product: espresso-router Application: espresso-router Fabric: prod-lor1 Application Version: 2019.66.5 Controller: PID
Hostname: lor1-app0878.prod.linkedin.com Slice ID: 25ecefc9-bb56-4c07-ab31-f1eb8dd97caf Product Tag: ROUTER_JHUBBUB
Owner: ramehrot Schedule ID: 5271
Status: COMPLETED Result: Completed Test - Failed to Hold QPS Details: PidAnalysis 349246 ending due to PIDStep 199373 never settling Redline QPS: –
Action State Result Target QPS Start End Health Check ———- ——– ————- ———— ———————– ———————– ———————- INCREASING FINISHED AGED 368 2020-08-10 11:03:39 PDT 2020-08-10 11:23:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 405 2020-08-10 11:23:12 PDT 2020-08-10 11:29:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 446 2020-08-10 11:29:12 PDT 2020-08-10 11:35:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 491 2020-08-10 11:35:12 PDT 2020-08-10 11:41:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 540 2020-08-10 11:41:12 PDT 2020-08-10 11:48:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 594 2020-08-10 11:48:12 PDT 2020-08-10 11:55:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 653 2020-08-10 11:55:12 PDT 2020-08-10 12:13:12 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 718 2020-08-10 12:13:12 PDT 2020-08-10 12:23:13 PDT http://go /ecu%20349246 INCREASING FINISHED AGED 790 2020-08-10 12:23:13 PDT 2020-08-10 12:39:13 PDT http://go /ecu%20349246 DECREASING FINISHED NEVER_SETTLED 790 2020-08-10 12:39:13 PDT 2020-08-10 13:18:14 PDT http://go /ecu%20349246
The go links caught my eye so I thought I’d continue the hunt there. They didn’t disappoint.

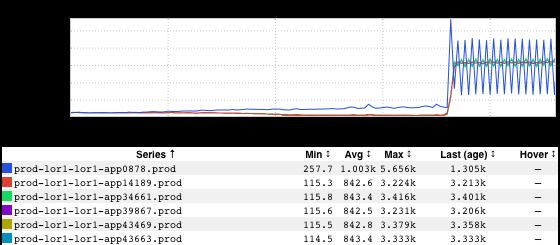

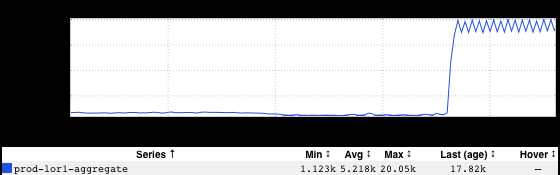

Okay, so it wasn’t just that one node - the QPS for the entire service drastically increased during the redliner run. Interesting. Let’s get rid of aggregation and see what we’re working with:
Huh. An increase in QPS, sure…but still, just that one node was wilding out. Hold up a tick…Zoom…Enhance:
Oooooo. Pretty!
At this point the graphs were raising more questions than answers. Why is the “blue” node’s d2 weight yo-yo’ing? Why is the “green” node picking up some - but not all - of the “slack” QPS-wise? …and why only the “green” node? Why does this cause the entire service’s QPS to oscillate? I mean, shouldn’t it remain roughly constant irrespective of what any individual node’s weighting is? Is that maybe an artifact of minutely metric reporting granularity? …which leads me to wonder: what did the client(s) see during this time period?
…and then I figured maybe it was time to stick a pin in it and get back to my Day Job.
